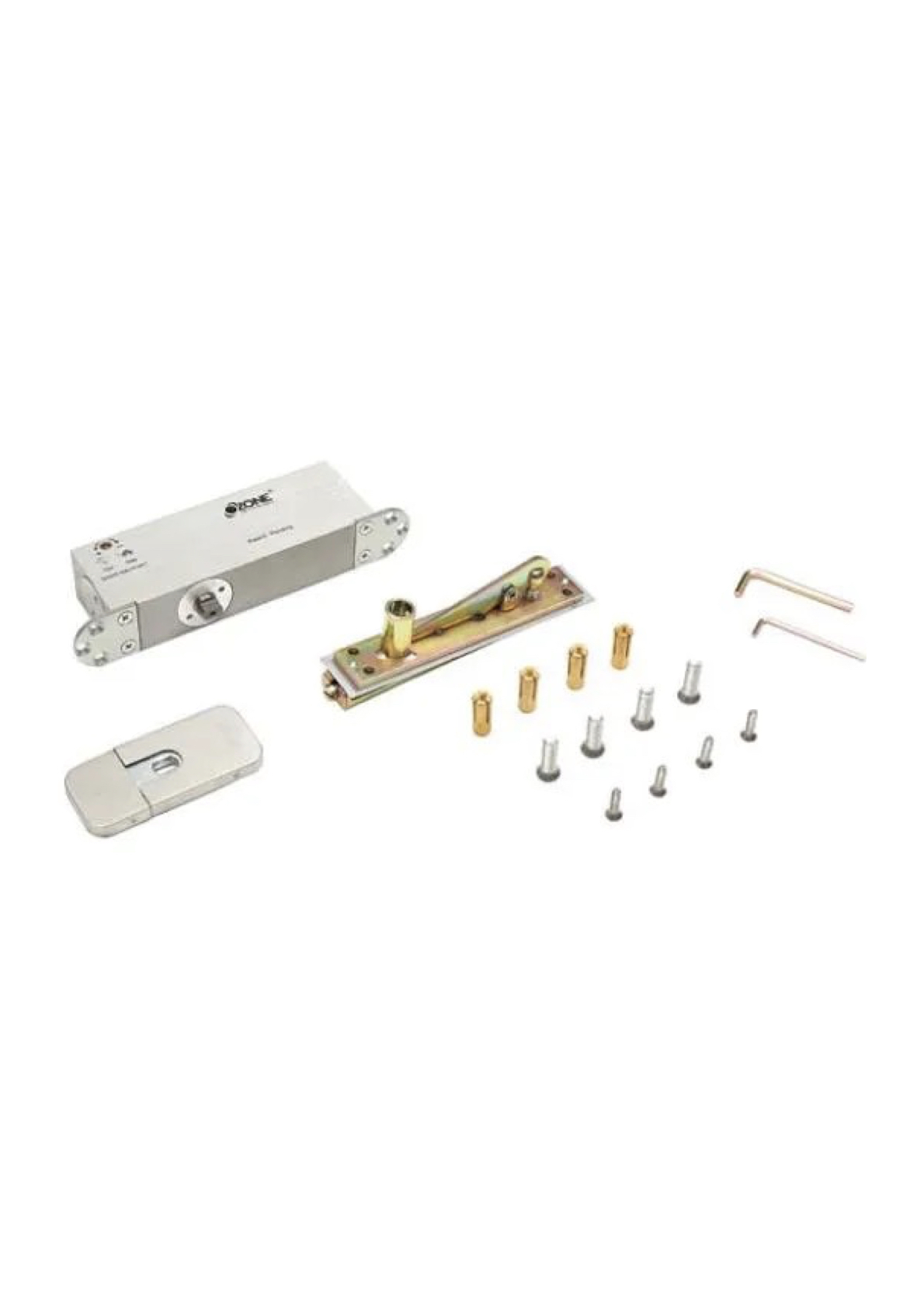

OCFH-RD-G 200 KG SSS - CENTRAL PIVOT HINGE FOR WOODEN DOOR
The Central Pivot Hinge for Wooden Doors offers 360° rotation and allows for free rotation in both directions, inside or outside. It ensures equal opening on both sides of the axis and can hold the door open at a 90° angle. Additionally, the hardware is concealed for a sleek, clean look.
- Application: Commercial and residential use
- Maximum Width: 2500 mm
- Maximum Thickness: 50 mm
- Maximum Weight: 200 kgs
- Functionality: 90° hold-open feature, 360° rotation, Sweep speed adjustable
- Material: High-grade SS 304 cover
- Finish Options: Satin Stainless Steel (SSS)
The OCFH-RD-G 200KG SSS Central Pivot Hinge is a premium-grade door hardware solution engineered for heavy wooden doors used in both commercial and residential spaces. Designed to deliver exceptional strength and stability, it supports door weights of up to 200 kg and widths up to 2500 mm, making it ideal for large, high-traffic entryways and architectural installations.
Featuring a 360° rotation mechanism, this hinge allows smooth and effortless door movement in both inward and outward directions, with equal opening capability on both sides of the axis. The 90° hold-open function enhances convenience and accessibility, especially in public or commercial environments.
Constructed with precision engineering and a non-handed design, the OCFH-RD-G offers flexible installation and long-term reliability. Its adjustable sweep speed ensures controlled door movement, reducing wear and improving operational safety. Manufactured with durable materials and a satin stainless steel finish (SSS), it combines aesthetic appeal with outstanding performance in demanding conditions.
