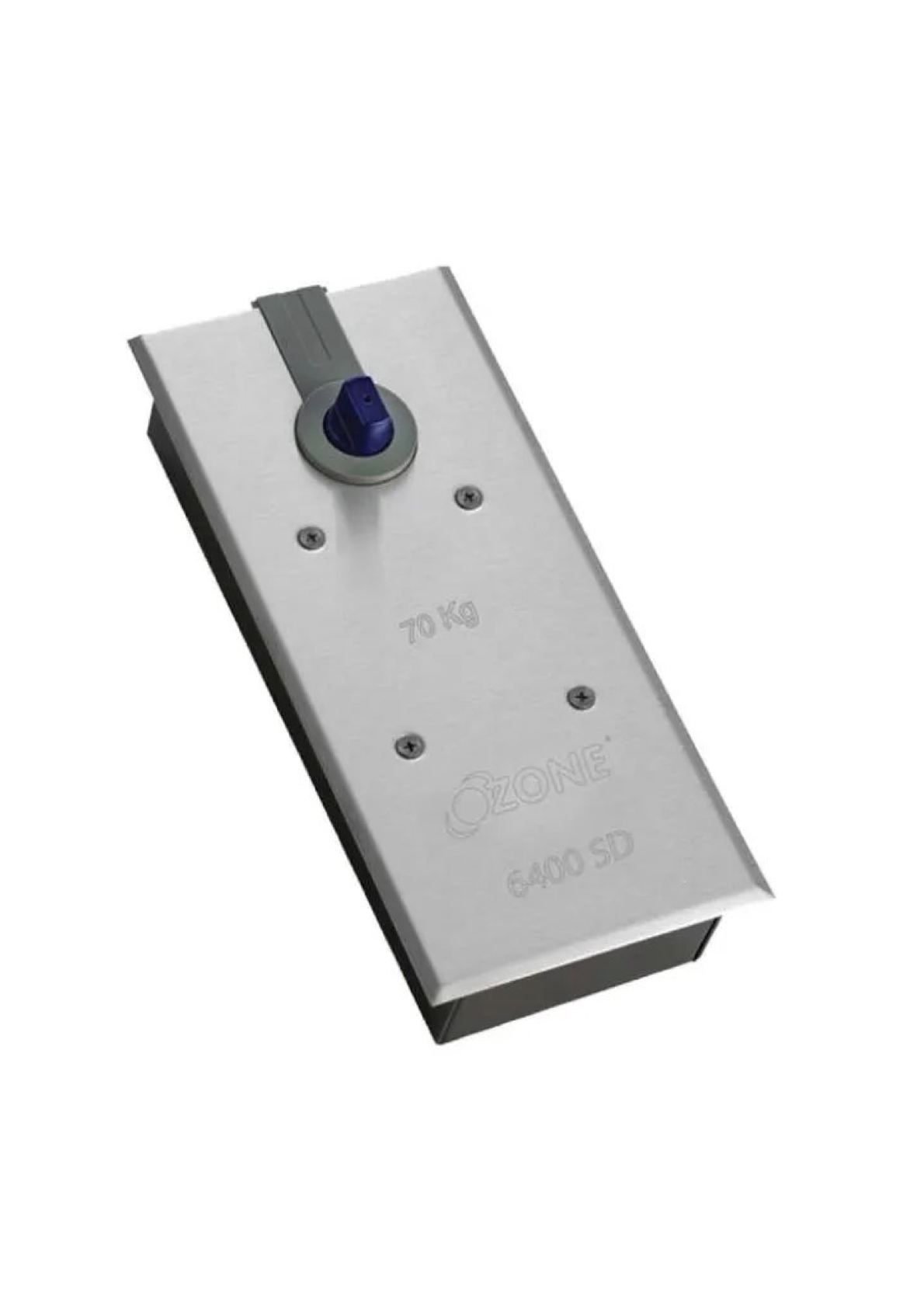

OFS-6400-SD-STD-SSS - Single Cylinder Floor Spring for Glass Doors EN3
Efficient EN3-Rated Floor Spring Set for Glass Doors — Designed for internal office partitions and small commercial entrances, this floor spring system supports up to 70 kg, 950 mm wide glass doors (framed & frameless), and includes top & bottom patches. Featuring smooth cam action closing, high-grade SS 304 cover, and a 3-year warranty — this low-maintenance solution ensures reliable performance and quiet, controlled door operation.
- Application: Framed & frameless doors
- Maximum Weight: 70 kgs
- Maximum Width: 950 mm
- Warranty: 3 years
- Material: High-grade SS 304 cover
- Finish Options: Satin Stainless Steel (SSS)
The EN3-rated Glass Door Floor Spring Set is designed specifically for internal office partitions and modest-scale commercial doorways, offering smooth, efficient, and reliable closing action with minimal maintenance. Engineered for standard glass door setups (framed or frameless), this floor spring combines refined mechanics with ease of installation and consistent performance.
Constructed with high-grade stainless steel (SS 304) cover components for superior corrosion resistance and long service life, the set includes the floor spring and both top and bottom patch fittings to ensure stability and alignment. The cam action mechanism delivers smooth operation, controlling the closing movement precisely and quietly; ideal for environments where both function and aesthetics matter.
This model supports doors weighing up to 70 kg and widths up to 950 mm, making it suitable for typical office and commercial interior uses without over-engineering. Backed by a 3-year warranty, the system offers long-term reliability and cost-effective performance, reducing downtime and service needs.
