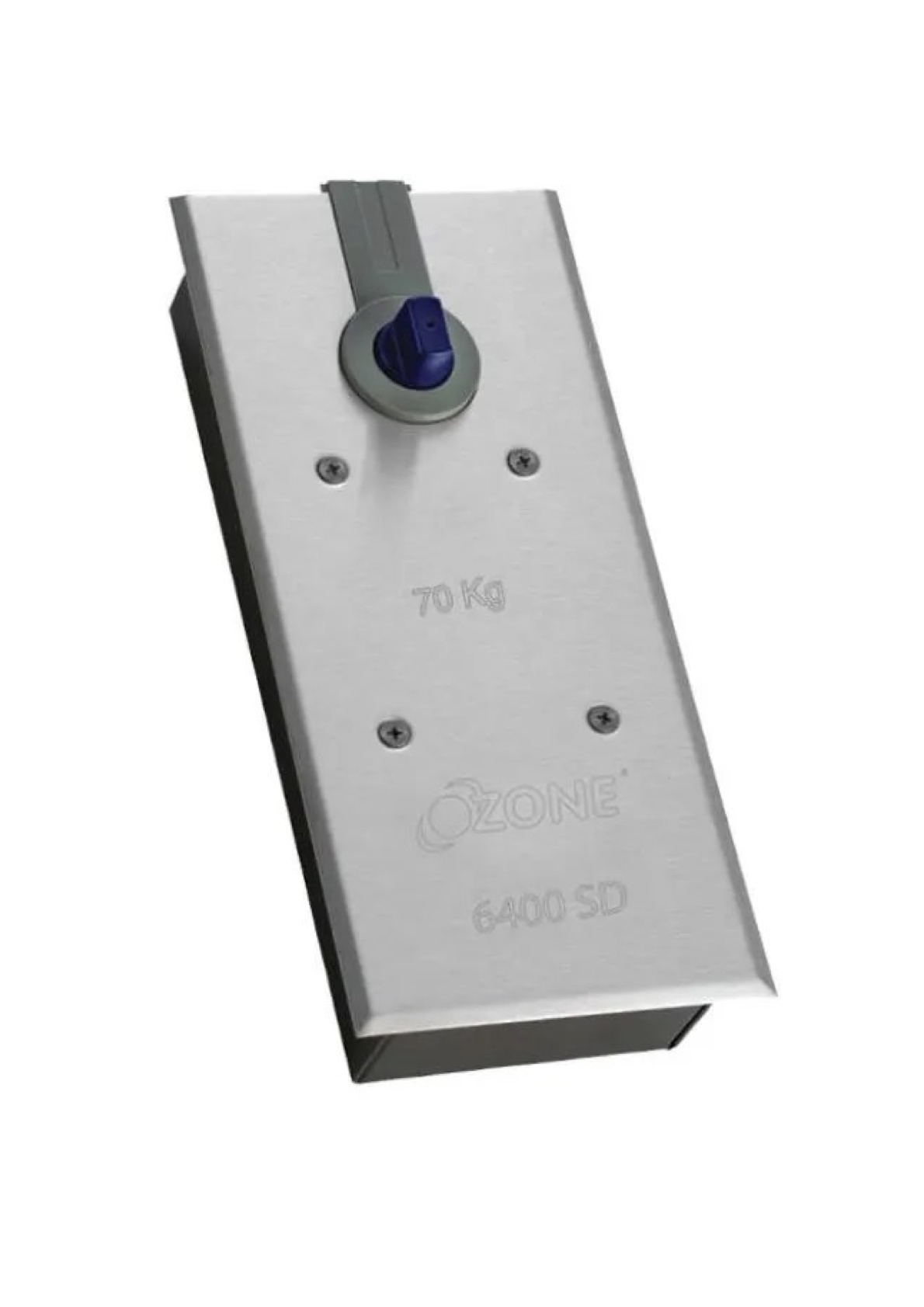

OFS-6400-TP-BPE1-STD - Single Cylinder Floor Spring for Wood Aluminum Framed Doors EN2
The OFS-6400-TP/BPE1 STD SSS Single Cylinder Floor Spring is designed for wood and aluminum framed doors, offering smooth and controlled door operation. Built to EN2 standards, it supports doors up to 70 kg and 900 mm wide, with adjustable closing speeds for precise performance. Supplied with top and bottom straps and finished in satin stainless steel (SSS), it ensures durability, corrosion resistance, and reliable functionality for commercial and residential use. Supplied with Top and Bottom Strap.
- Application: Frame doors
- Maximum Width: 900mm
- Maximum Height: 2100mm
- Maximum Weight: 70 kgs
- Dimensions: Including cement box, 230x100x48 mm
- Closing speed: 130-10(Δv)
- Material: High-grade SS 304 cover
- Finish Options: Satin Stainless Steel (SSS)
The OFS-6400-TP/BPE1 STD SSS Single Cylinder Floor Spring is a reliable and efficient door control solution designed specifically for wood and aluminum framed doors. Built to meet EN2 performance standards, this floor spring offers smooth, controlled door operation suitable for medium-duty commercial and residential applications.
With a maximum door weight capacity of 70 kg, a maximum width of 900 mm, and a height limit of 2100 mm, it ensures precise and consistent door movement, ideal for environments where both functionality and aesthetics are essential. The adjustable closing and final closing speeds (130°–10° and 10°–0°) allow for customized operation, ensuring safety and ease of use across various door configurations.

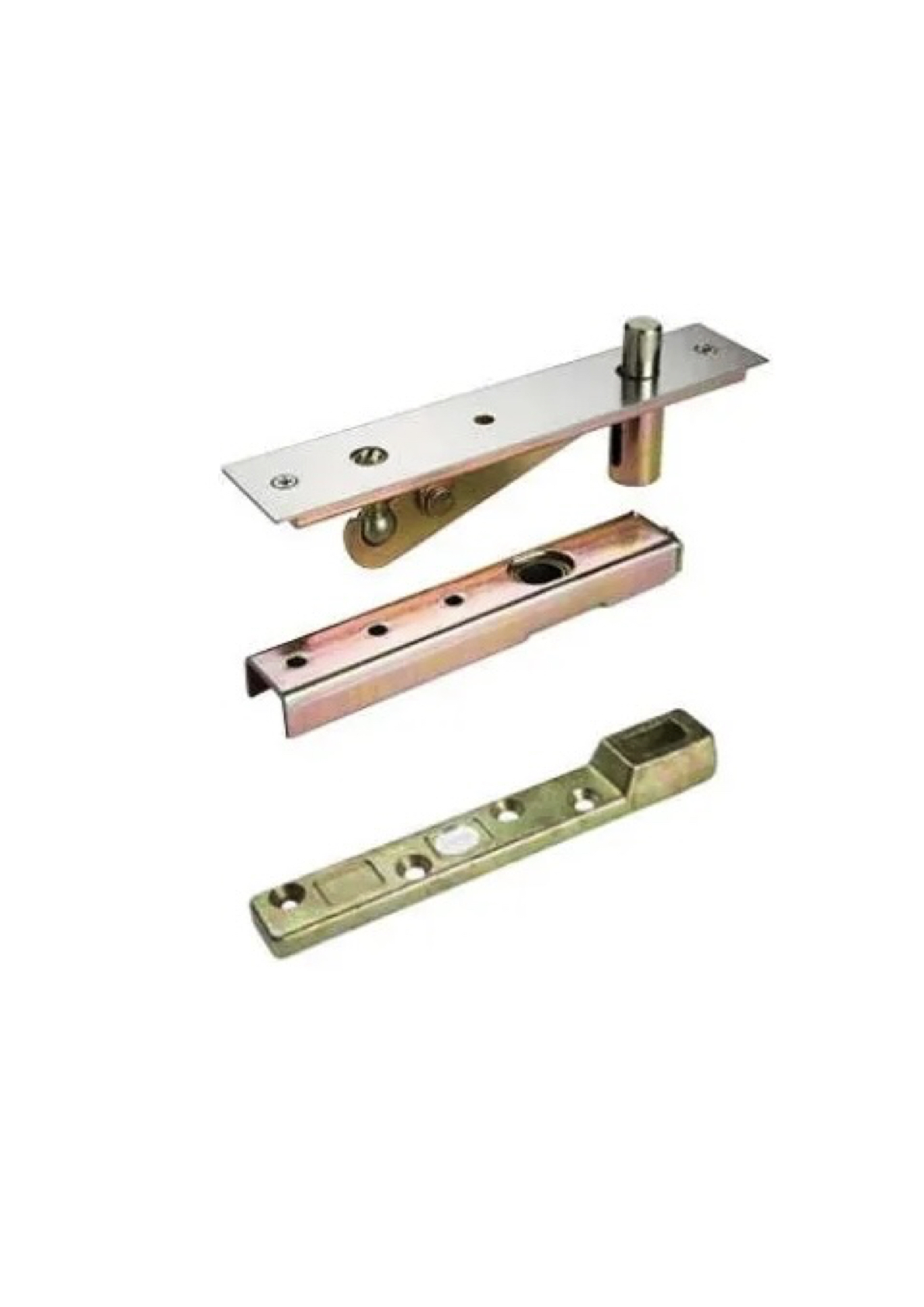

Constructed with a durable stainless steel cover in SSS finish, this floor spring provides excellent resistance to corrosion, making it suitable for long-term use in demanding environments. The product is supplied complete with top and bottom straps, simplifying installation and ensuring secure alignment.

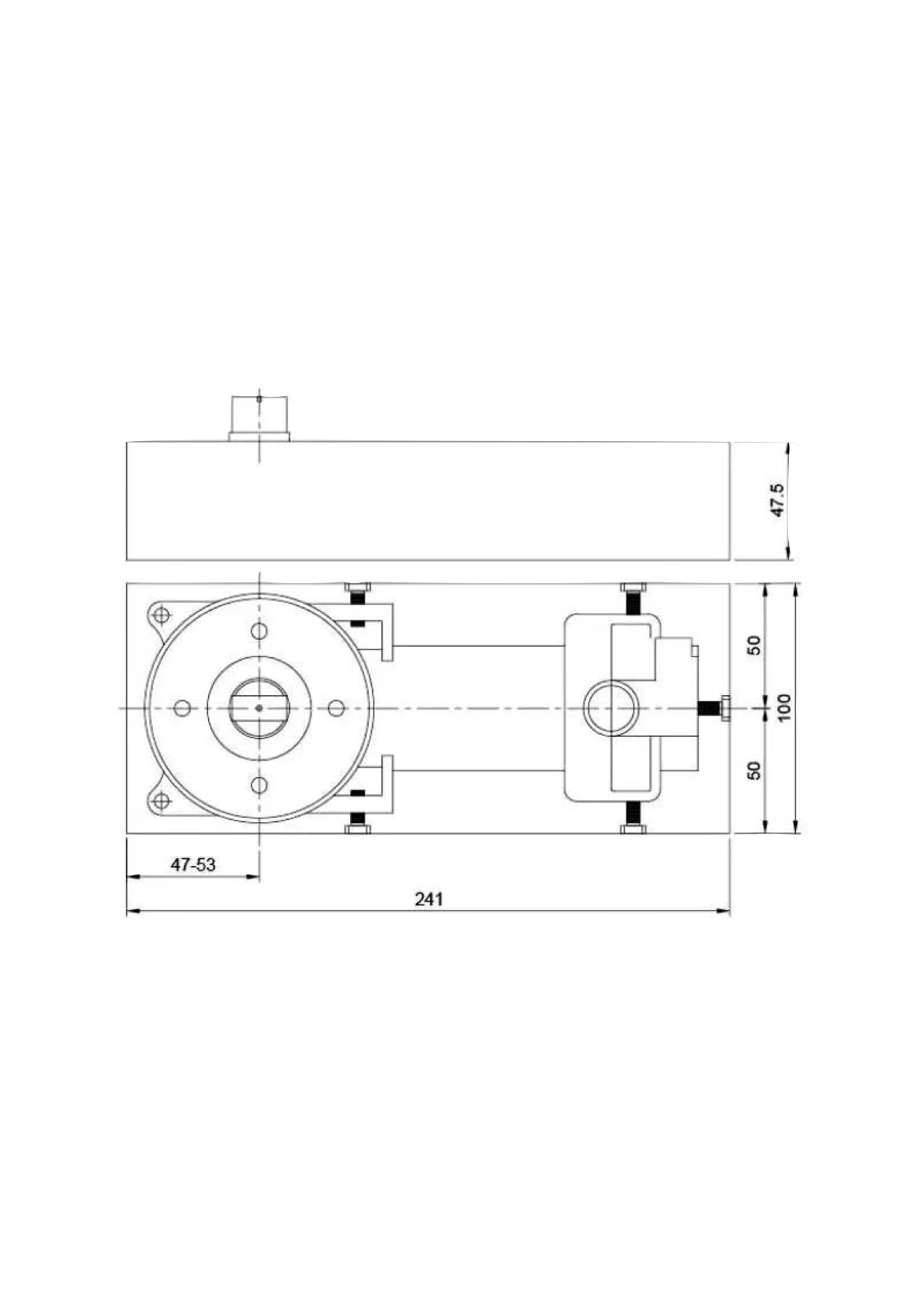

Compact in design with a dimension of 230 mm (L) x 100 mm (W) x 48 mm (H) including the cement box, the OFS-6400-TP/BPE1 delivers both strength and subtlety, offering a discreet yet powerful door control mechanism. Ideal for offices, retail outlets, and residential projects, it combines durability, safety, and modern design for reliable performance in every installation.
